Our most versatile
digital signage player

HMP400 is your reliable partner for any signage scenario.

The latest and greatest digital signage players from the fourth generation of our award-winning HMP line. 4K at 60 fps, HTML5, PoE+, WiFi are some of the key features of the HMP400. Maximum power and flexibility for any signage application.

HMP400

At the core of our digital signage solution lies the HMP400 Hyper Media Player. Engineered in Switzerland and made in Germany, HMP400 comes with 3 years of warranty, extendable to 5 years. It is the powerful hardware you need capable of reliably delivering 4K at 60 fps 24/7 for a decade.

Key Features

Commercial grade, long-life 24/7 use
Fanless, compact, and flat-form factor design
Dust-resistant, designed for extreme conditions
Passive heat dissipation
Intel® Atom® processor
DSOS™ by SpinetiX – signage operating system
4K | 60 fps ready
Power over Ethernet (PoE)
WiFi version available
3-year warranty included
Engineered in Switzerland, made in Germany

Experience Cloud-based Signage with SpinetiX ARYA

SpinetiX ARYA is a cloud-based solution natively integrated with HMP400 to provide you with a secure professional-grade signage from the moment you unbox the player. Set spectacularly visual messages on display in minutes with your pictures and 4K videos at 60 frames per second.

Learn more

Do More.

HMP400 keeps you covered as your business evolves. Together with its DSOS operating system, the player supports 3 modes of advanced features which can be activated on demand.

Choose the feature set that’s right for you.

WIDGETS

Bring your story to life with your data

KIOSK

Craft amazing interactive experiences with HTML5

SYSTEMS

Harness the power of integrated technology

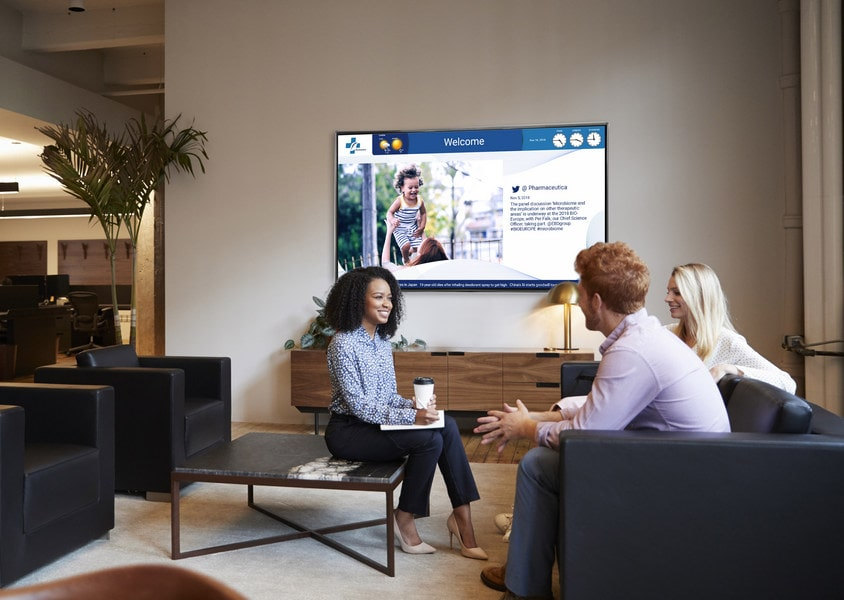

corporate welcome display with data-driven widgets

Bring Your Story to Life with Your Data

In WIDGETS mode, you combine the power of HMP400 and the versatility of Elementi and its 250+ widgets. Fill any display with content that auto-updates using data from your everyday tools like social media, G-Suite, or Microsoft Office 365. Widgets are easily customizable, simple, and powerful to deliver information.

interactive kiosk display with spinetix signage

Craft Amazing Interactive Experiences with HTML5

The KIOSK mode builds on top of the Widgets mode and allows you to offer rich interactive content. Native support for HTML5 enables your team to craft captivating user experiences for any display.

integrated digital signage with queue management system ESII and spinetix

Harness the Power of Integrated Technology

SYSTEMS mode allows you to immerse audiences with your story through IoT solutions and third-party technologies. With sensors, cameras, smart-building, queue management systems and more, you have the full integration capacity of HMP400 to deliver experiences with an unlimited degree of personalization.

4.7 DSOS Release ^NEW

Experience digital signage as an interactive channel of communication. With even more streaming capabilities like support for video output, the new release of our DSOS operating system combined with the latest release of our Elementi 2021 software allows more ways to display and interact with screen content. Webcam and multitouch support enabling advanced video collaboration are some of the many new features now available.

SEE RELEASE NOTES

Specifications

Connectors & ports

Video
HDMI 2.0 (lockable) or DisplayPort 1.2 (USB-C lockable alternate mode)

USB port
3x USB 3.0 (USB-C lockable)

Network
3Ethernet 1GbE, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3az. HMP400W (with Wifi module): Wi-Fi IEEE 802.11a/b/g/n/ac Wave 2, 2x2 MIMO

Power supply
Power over Ethernet (PoE+/802.3at) or USB-C lockable Power Delivery 2.0, 27W (min 3A@9V)

Size & weight

Size
Width: 7.87” / 200mm, height: 1.1” / 28mm, depth: 4.72” / 120mm

Weight
23.3oz / 660g

Display

Video
DCI 4K (4,096×2,160), 4K UHD (3840x2160), 1080p (1920x1080), custom resolutions, etc.

Audio
Up to 8 channel digital audio over HDMI / DisplayPort / USB-C, stereo analog audio (line level, accessory required)

Control
HDMI-CEC, DisplayPort, serial port (advanced protocols, accessory required)

Operating system

DSOS™ by SpinetiX

OS Security
Cryptographically signed firmware packages, local access to OS restricted, Intel® Boot Guard protection, Secure Boot

Storage

Internal
16 GB solid state, eMMC 5.1 Industrial MLC NAND with OS in higher endurance SLC area

External
Hard disk (via USB 3.0)

Processor & memory

Processor
INTEL™ Atom x5-E3930

Memory
RAM: 4GB

Warranty

3 years included limited hardware warranty, extendable to 5 years

Docs

HMP400/W
spec sheet
(PDF)

Which player is right for me?

We have the right player for every occasion. Discover our line of players and how they can help you stay on top of your digital signage project today.


	HMP400/HMP400W	HMP350	HMP300
Applications
Video & image playback
Playlisting & scheduling
Data feeds	*
Interactivity	advanced *	advanced	simple
HTML5	*	deprecated	deprecated
Video walls	*
Live streaming	*
Software
Web interface
SpinetiX ARYA
Elementi	*
Cockpit monitoring
Specs
Resolution	4K, 60 fps	1080p	1080p
Storage	16 GB	16 GB	8 GB
WiFi
PoE+
Warranty	3 years	3 years	3 years

Docs	HMP400/W spec sheet (PDF)	HMP350 tech specs (PDF)	HMP300 tech specs (PDF)

^{* Please note that the HMP400 would require a valid DSOS licence to activate some of the features described above. Please contact your SpinetiX representative for more information.}
